Rotary Air Locks are used for discharging the dust from Bagfilter / Cyclomax hopper.
They seal against loss of air / gas and thus maintain the operating pressure in the systems.
They are also used as Volumetric Feeders to maintain an even flow or material through processing systems.

Sneha Rotary Air Lock Feeders have wide application in industry wherever dry freeflowing powders, granules,
crystals or pellets are used. Typiecal material handled with sneha units include cement, sugar, minerals, grains,
plastic, dust, fly ash flour, gypsum, lime, coffee and cereals.

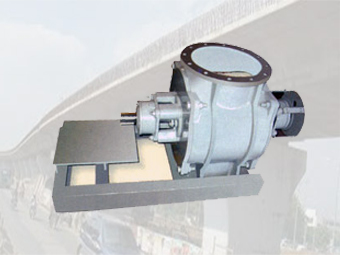

Rotary Air Lock Valves



Rotary Air Lock Valves



Rotary Air Lock Valves


Features

Sturdy eight blade C.I. Rotor with EN8 shaft with fixed or adjustable blades.

Removable side plate for easy access to replace the seal.

Air Purge to prevent leakage and protect packings.

Maintains vacuum or pressure up to 20" W.G.

Chain Drive with TEFC motor.

Heavy duty Cast Iron Body.

Simplified drive assembly.



Capacities in Cubic Feet per Minute (Based on 100% fill factor)

Size
H.P.
15 RPM
20 RPM
25 RPM
30 RPM
6"
0.5
1.05
1.4
1.75
2.1
8"
0.5
2.7
3.6
4.5
5.4
10"
0.75
5.4
7.2
9.0
10.8
12"
1.0
9.6
12.8
16.0
19.2
14"
1.0
15.75
21.0
26.25
31.5
16"
1.0
24.0
32.0
40.0
48.0
18"
1.5
34.2
45.6
57.0
68.4
20"
1.5
47.0
62.7
78.4
94.0
22"
2.0
62.5
83.3
104.1
125.0



knife gate valves



slide gate valves

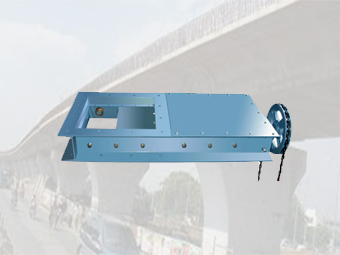

Knife Gate Valves
